MaxP Beacon B16

Certifications & Standards
• ECE R65 (TA1, TB1, TR1); ECE R10: SAE J845; CA13;
Color Options
• LED Colour: RED BLUE,AMBER,WHITE
• Lens Colour: RED BLUE,AMBER or Clear

<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>

Details

Certified powerful ECE R65 performance in all colour.
Aero-dynamic Smooth dome lens for best appearance.
Low profile design with only 88mm in height.
Multiple mounting styles for all vehicle applications.
12-24VDC operation.
Non-volatile flash pattern memory.
Mulit-units synchronization in simultaneous or alternating flash.
100,000 hours rated Long-Life LED.
Reverse polarity protection.
Weatherproof and shockproof capability for all environment.

Additional information

LED Color	RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN
Lens Color	Clear, Amber

Specifications

Compliance:	ECE R65 (TA1, TB1, TR1); ECE R10: SAE J845; CA13;
LED Elements:	High-power LED x 8 pcs
Wires:	Single button cigar-plug: 300cm/118.11in ISO 4165 “Euro” plug: 250cm/98.42in Permanent Mount
Operating Temperature:	-30°C to +65°C
Max Current:	2.4A @12.8VDC/1.3A @24VDC
Max. Power:	30W

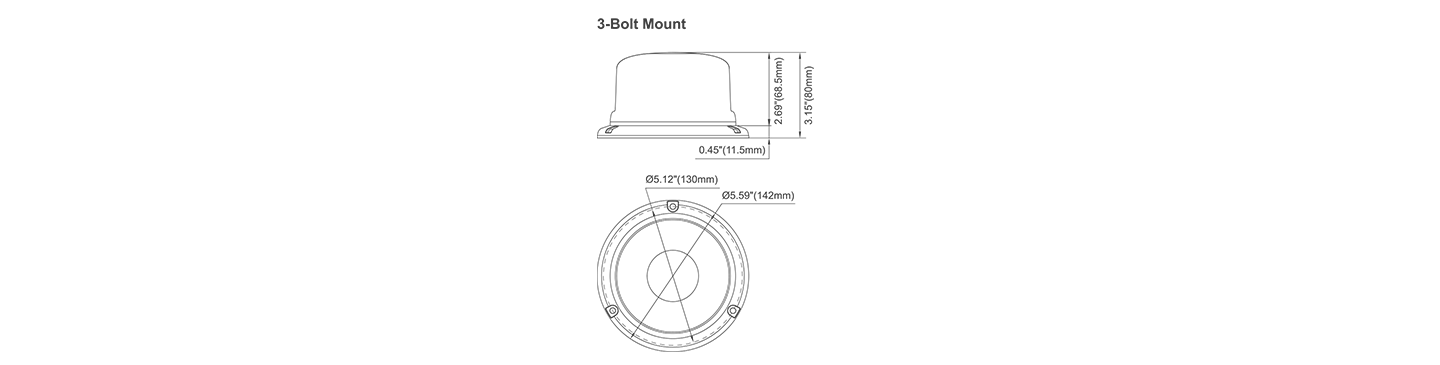

Dimensions

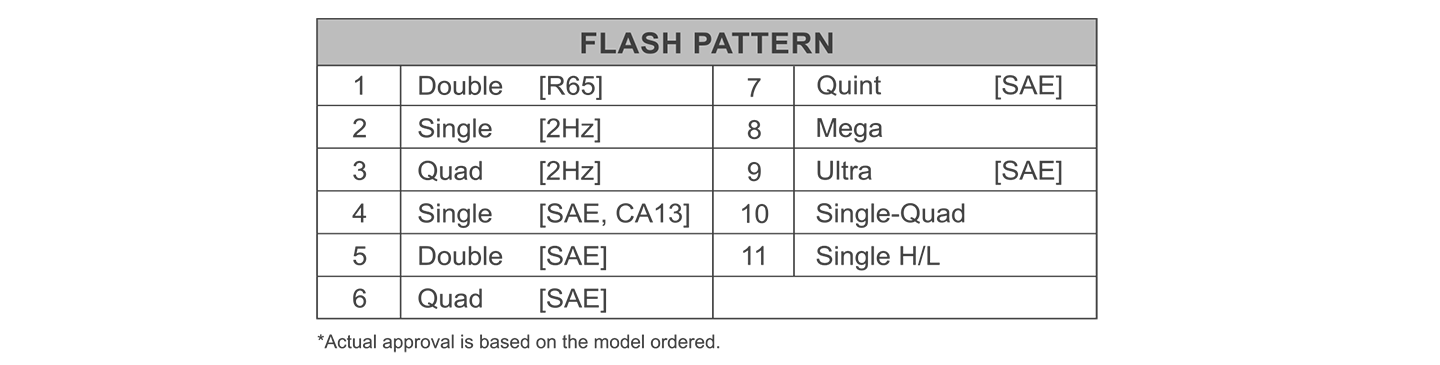

Pattern

Download

DOWNLOAD MAXP Beacon B16 Spreadsheet

DOWNLOAD MAXP Beacon B16 User Manual
