MaxP CROWN Single Color

Certifications & Standards
• ECE R65 XA2 / XB2 / XR2
(Single Color, Clear Lens)
• ECE R65 XA1 / XB1 / XR1 – NEW
(Single Color, Smoked Lens)
• ECE R10
• CISPR 25
• SAE J595 Class 1
Color Options
• LED Colors: Red, Blue, Amber, White
• Lens Color: Clear

This product is currently out of stock and unavailable.

Details

  • ECE R65 Class 2 homologated output for ultimate safety.
  • Pop-n-Lock: Quick One-step Installation with unique snap-on grommet design.
  • Smoked lens provide less conspicuous appearance and smooth aesthetic for modern vehicles.
  • Alluminium housing for efficient heat dissipation with compact-size design.
  • Featuring Independent Cruise Mode in calmly steady burn.
  • ECE R10 EMC Compliance.
  • All-in-one self-contained for easy and versatile installation without external flasher.
  • Non-volatile memory recalling last flash pattern used at power-up.
  • Multi-units synchronization in simultaneous or alternating flash.
  • Reverse polarity protection.
  • Weatherproof and vibration resistant design for external or internal use.

Additional information

LED Color

RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN

Lens Color

Clear, Amber

Specifications

Compliance:
ECE R65 XA2/XB2/XR2 (Single Color/ Clear Lens); ECE R65 XA1/XB1/XR1 NEW (Single Color/ Smoked Lens); ECE R10; CISPR 25 SAE J595 Class 1
IP Rating: IPX7
LED Elements: High Power LED x 6 pcs;

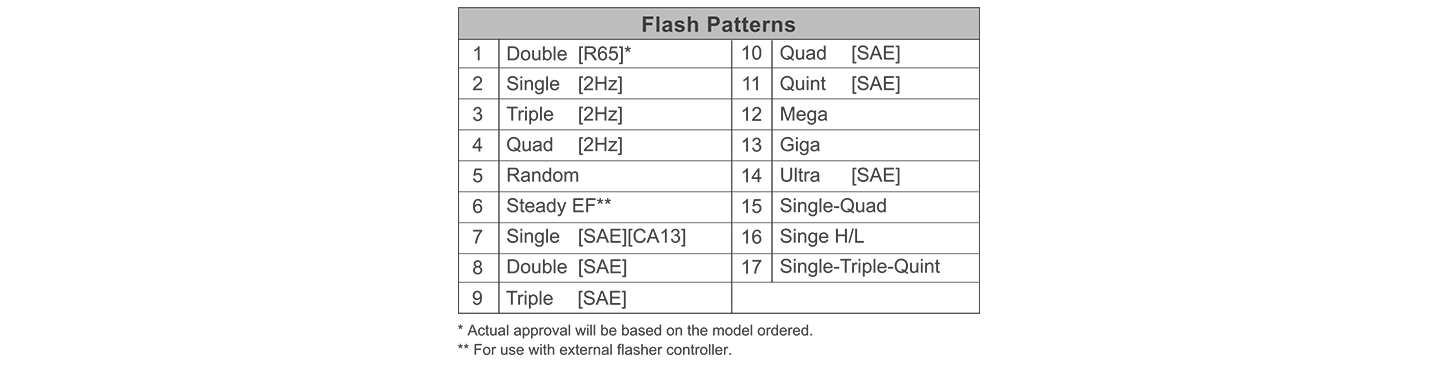

No. of Warning Patterns: 17
Operating Voltage: 12-24V
Avg. Current: 0.81A @12VDC/0.41A @24VDC (varies with flash pattern)
Max Current: 1.62A @12VDC/0.81A @24VDC
Max. Power: 19.4 Watts
Wires: Red-Vcc: 21cm (24AWG)
Black-GND: 21cm (24AWG)
White-Low Power Operation: 21cm (24AWG)
Green-Cruise Mode: 21cm (24AWG)
Yellow-Flash Patterns & Sync: 21cm (24AWG)
Fuse Recommended: ЗА
Multi-Unit Synchronization: Up to 20 units
