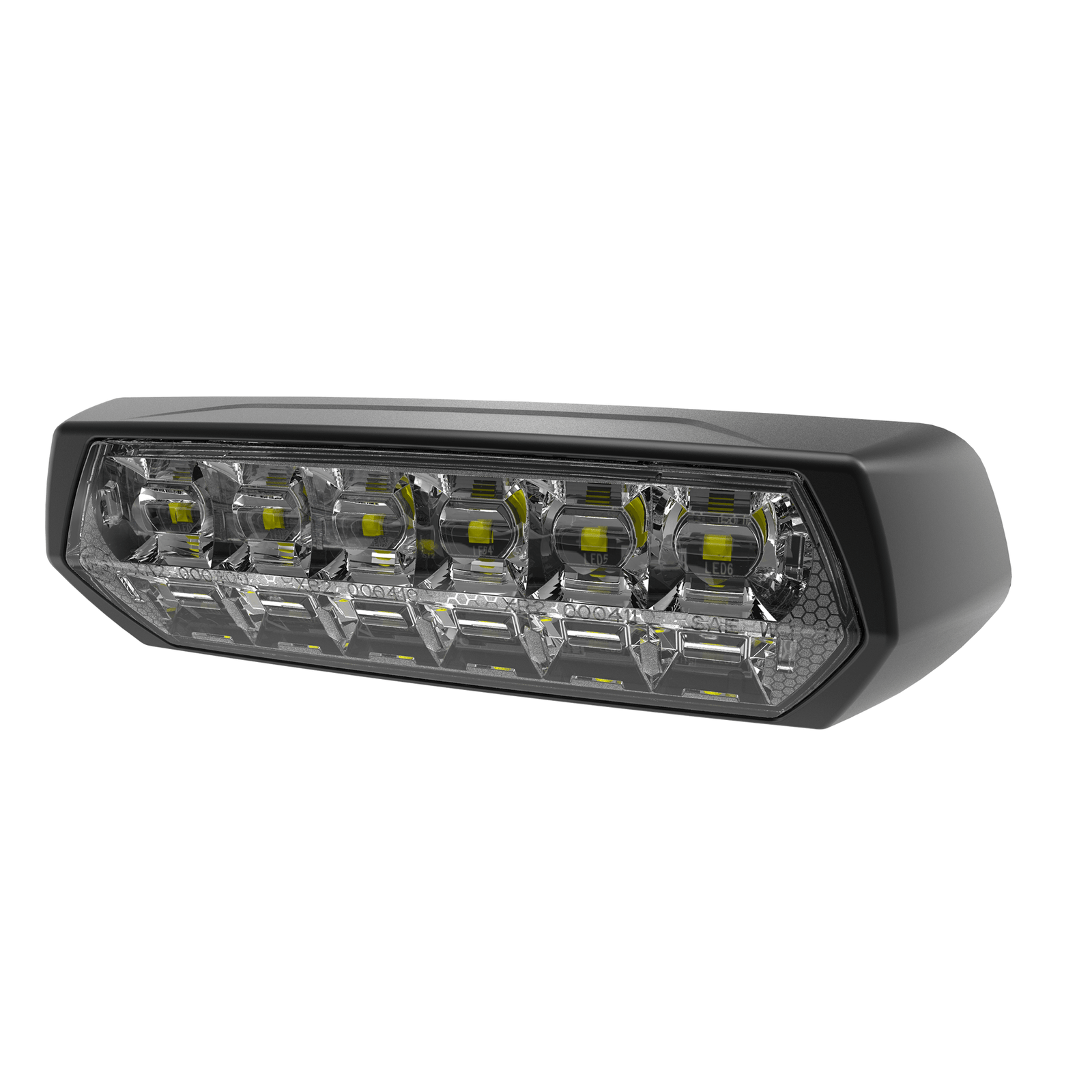

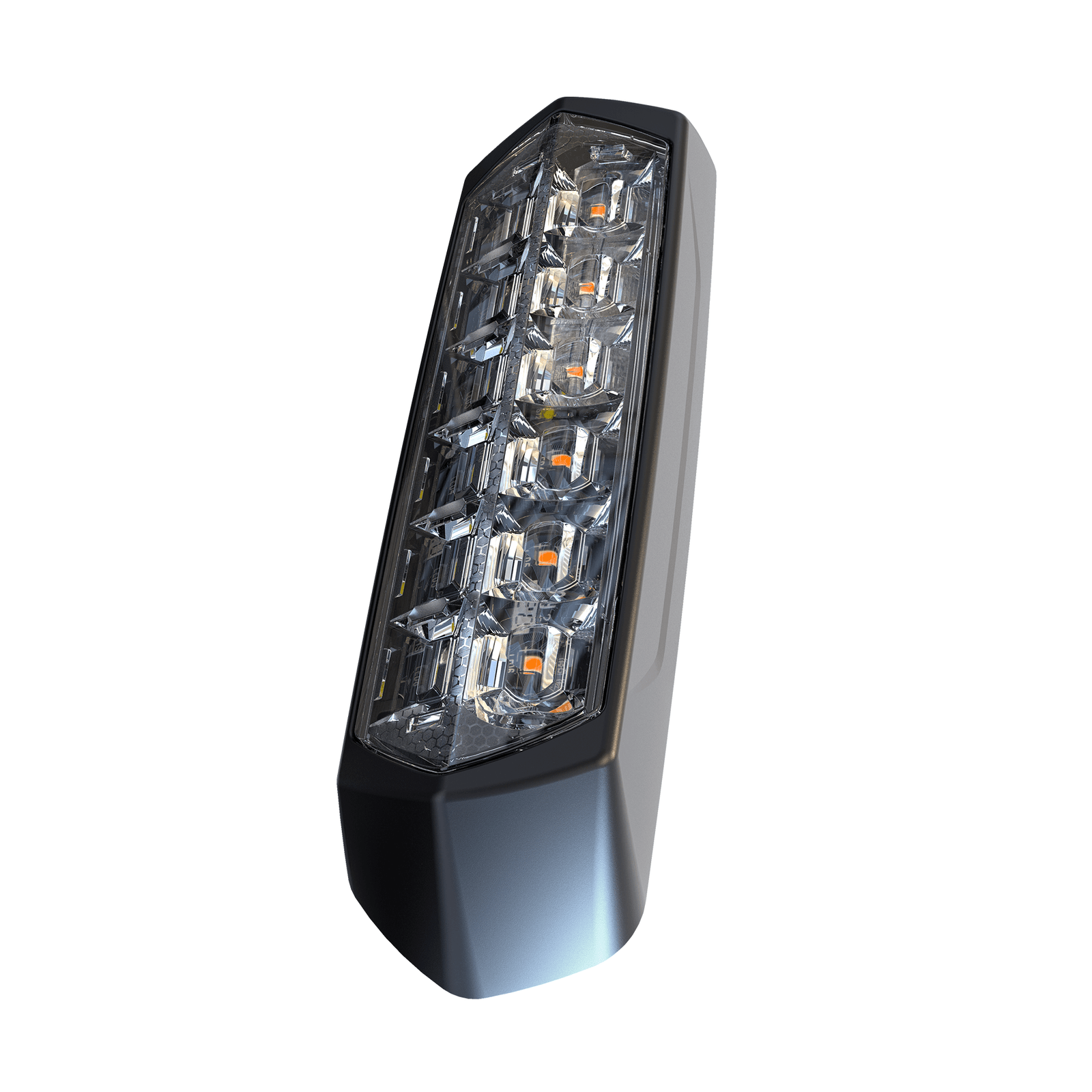

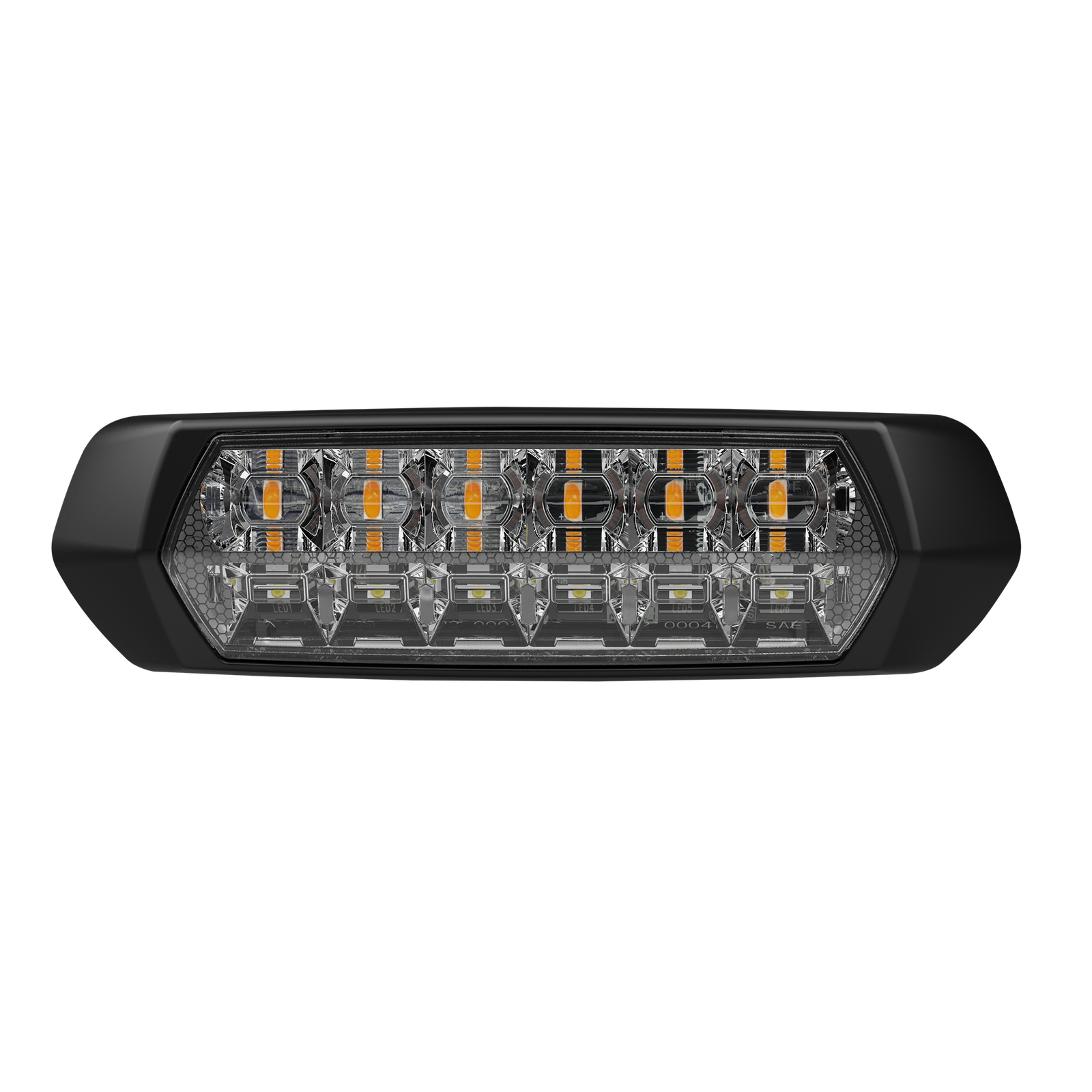

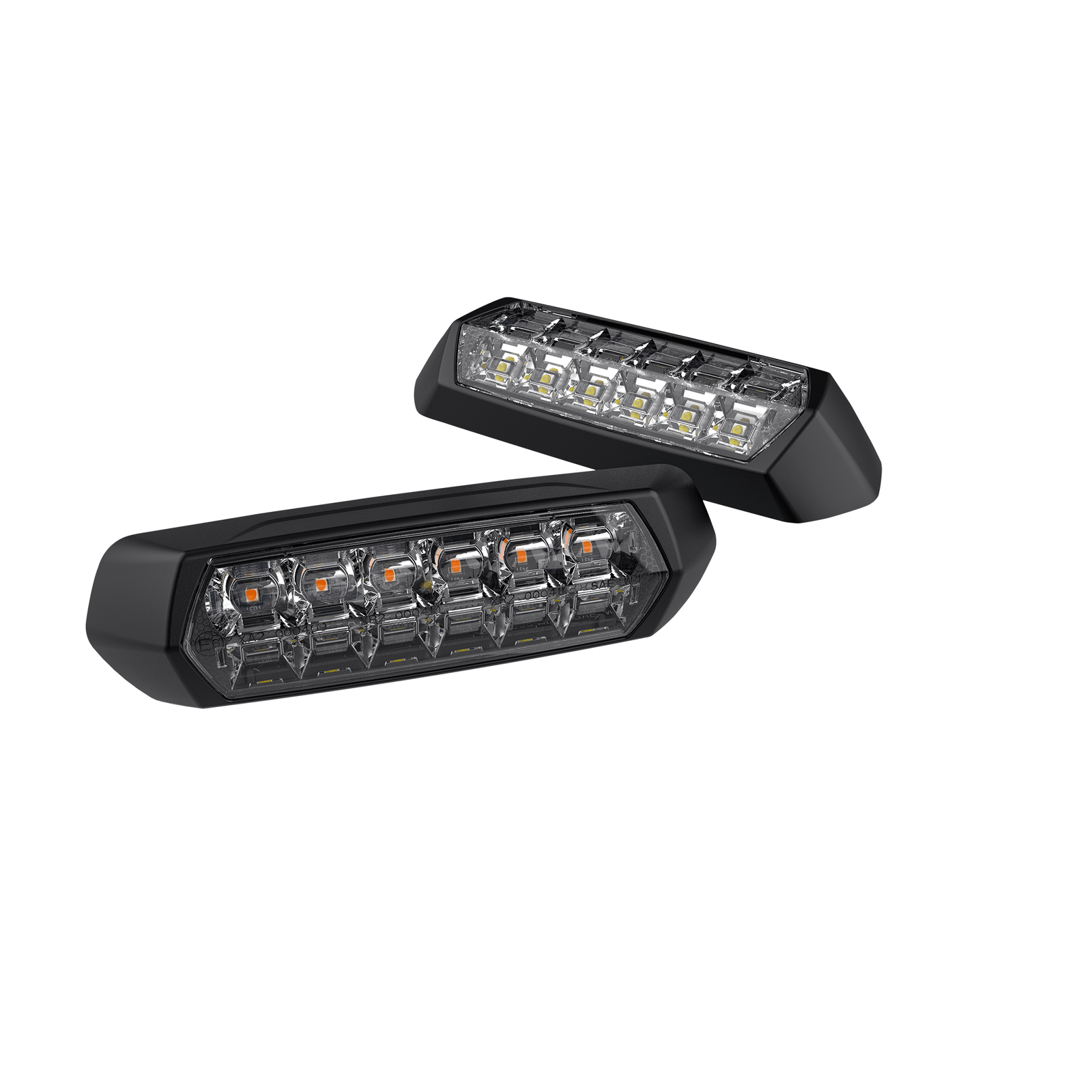

Name: MaxP Scenemax Series M080
SKU: 9217
Availability: OutOfStock

Details

2-in-1 unit provides both powerful warning light and wide angle scene light for versatile application.
Meet ECE R65 Class 2 and SAE Class 1.
Over 1700 lumen output; Luminous intensity 890 lux at 1 meter.
“Scene to Cruise” function turns warning to cruise automatically when scene light is turned ON.
ECE R10 EMC Compliance and meet CISPR 25 Class 3.
Multi-unit synchronization in simultaneous or alternating flash,
Reverse polarity protection.
Weatherproof to IPX7 and vibration resistant design for external use.

Additional information

LED Color	RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN
Lens Color	Clear, Amber

Compliance:	ECE R65 (XA2, XB2, XR2), ECE R10, SAE J595 Class1; SAE J845 Class1; CISPR 25 Class 3; CA Title 13; IPX7
LED Elements:	High-power LED x 6 pcs (Warning light) High-power LED x 6 pcs (Scene light)

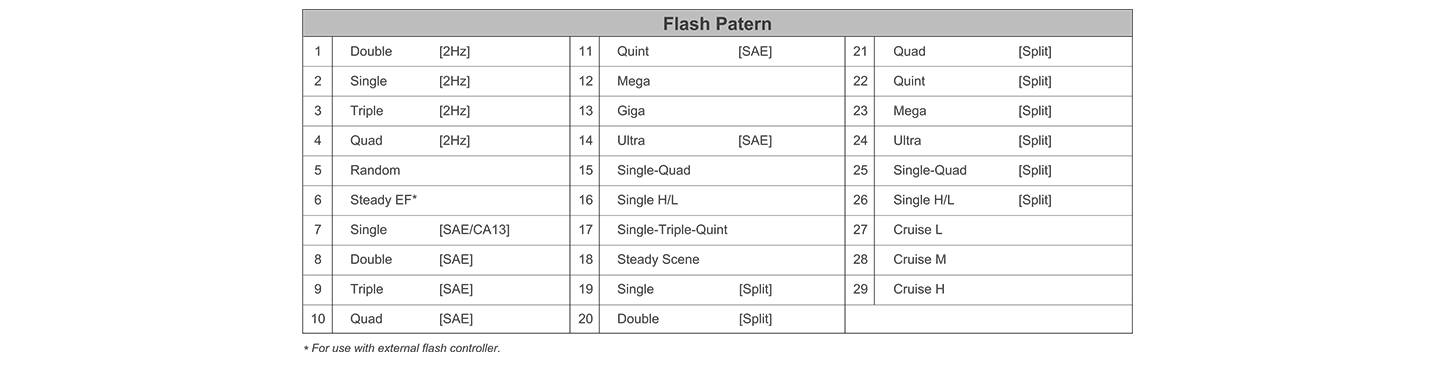

No. of Warning Patterns:	29
Operating Voltage:	12-24VDC Avg. Current: 0.62A @12VDC/0.31A @24VDC (varies with flash pattern)
Max Current:	1.25A @12VDC/0.62A @24VDC
Max. Power:	15 Watts
