Ambulance Warning Siren System In UAE by MaxP

MaxP SDN212H/R Series

Certifications & Standards
• SAE J1849 EVS1; ECE R10; CISPR 25

This product is currently out of stock and unavailable.

Details

  • Fully programmable and customizable configuration with PC software:
  • Button & Input style: Maintained, Momentary, Timer and etc.
  • Button Interlink, Interlock & Output port.
  • – Tone selection: Primary, Override, Mixer, Hands-free Tone.
  • Multi-press function.

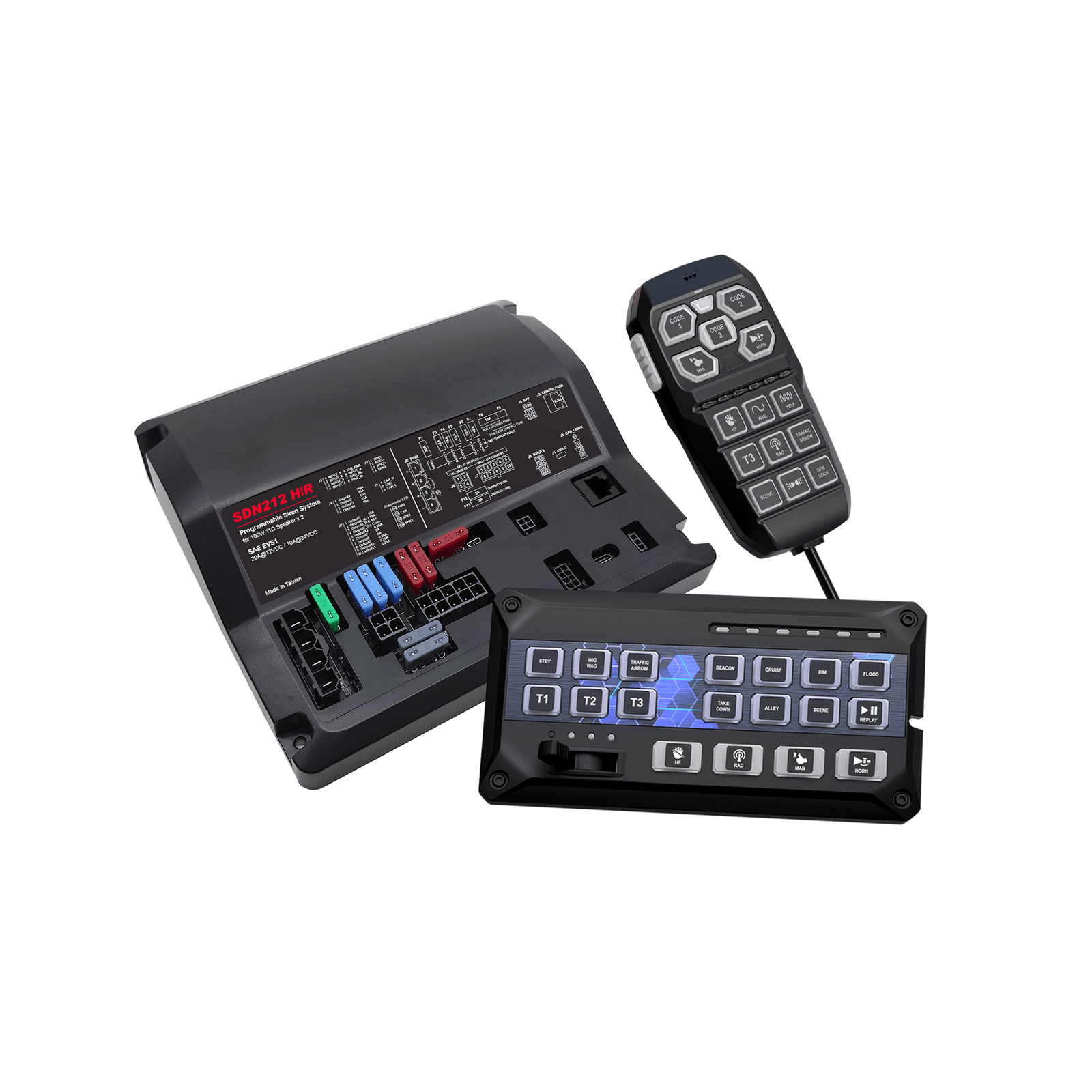

  • Two choices of controller style:

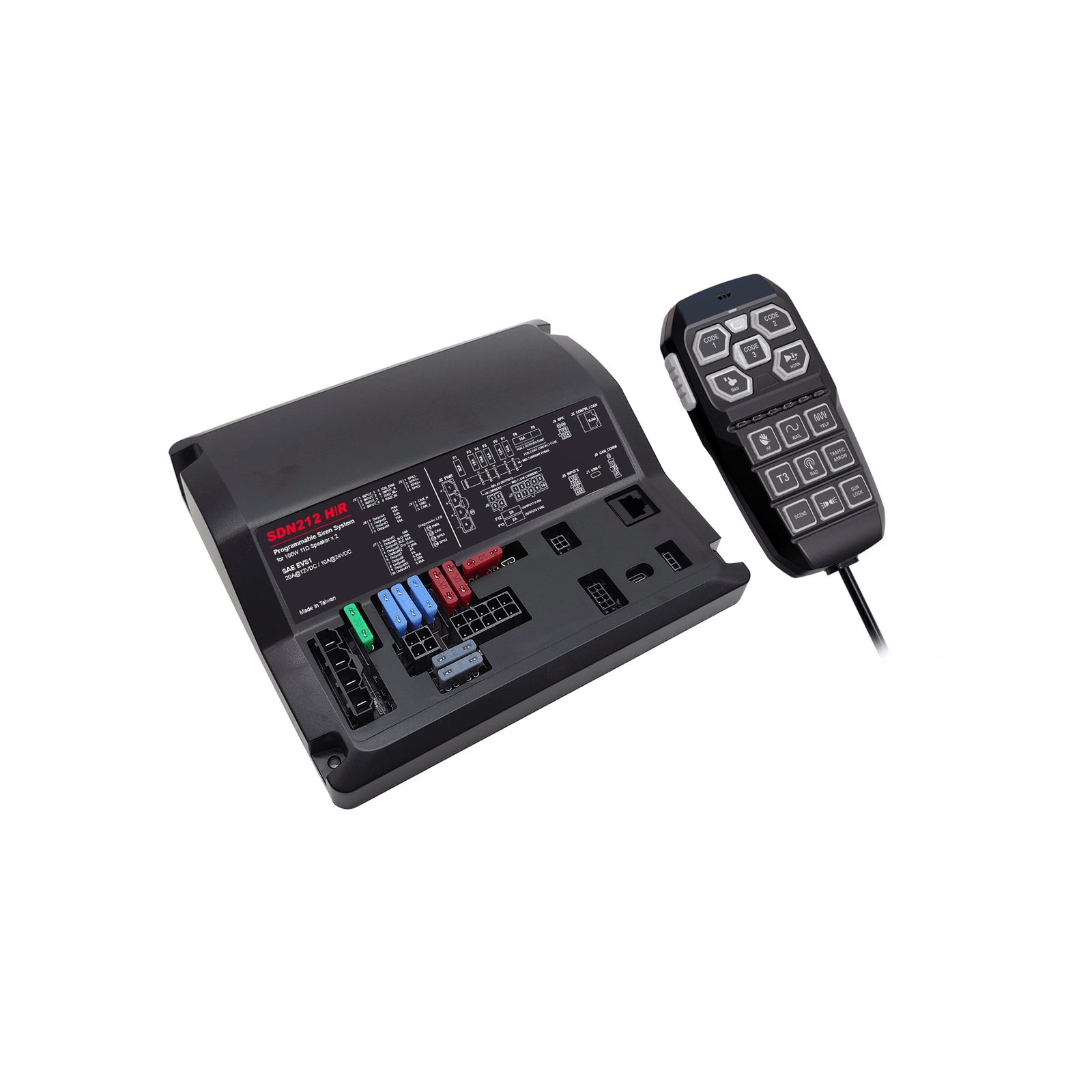

  • -15-Button Hand-held Controller w/ built-in Mic, Button buzzer, 6-Traffic Arrow indicator LEDs and power magnet mounting mechanism.

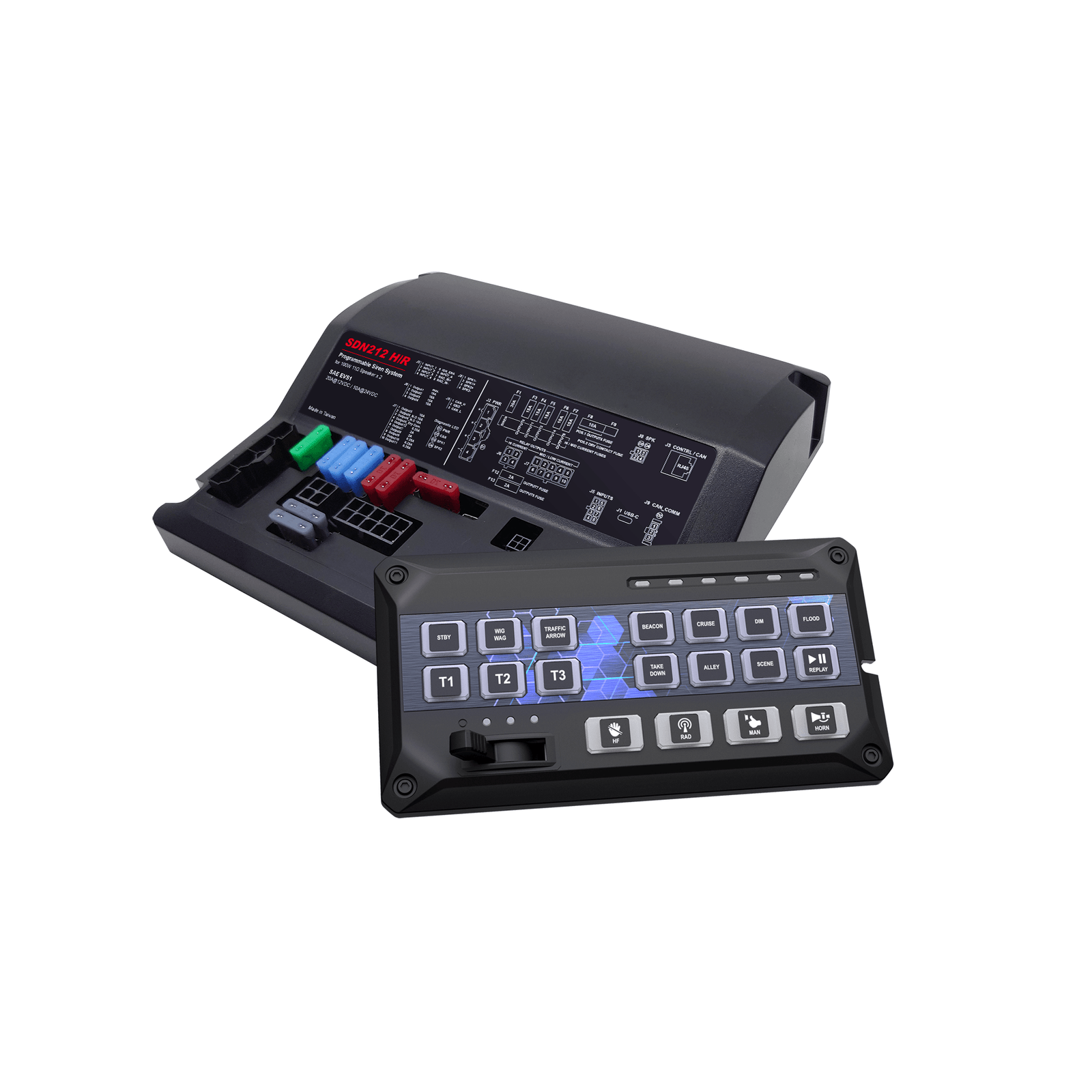

  • 19-Button w/ 4-position slide Panel Controller w/ detachable hand-held microphone, Button buzzer, 6-Traffic Arrow indicator LEDs and 1 stealth hidden button.
  • 12 Outputs and 1 dry contact relay output (w/ independent N.C and N.O).
  • 4 Positive or negative activated Logic Inputs and 1 voltage-variable Analogue Input.
  • 12-24VDC multi-voltage Class D amplifier for low amp draw and clean sound.
  • 200W amplifier supports one or two 100W speakers (110).
  • Selectable tone including Wail, Yelp, Phaser (Piercer), Hi-Lo, Mechanical, European Tone and etc.
  • Radio Re-Broadcasting (RRB) for audio replay.
  • “Record-n-Play” function: Record instant replayable messages up to 30 seconds.
  • “DUAL TONE” function allows two speakers each plays different siren tone for a fanfare Effect.
  • Voltage detection, programmable for auto low voltage protection.
  • Special designed circuitry allow super low standby current of only 2mA during Sleep Mode.
  • Sleep Mode button on controller allows ON/OFF using both Controller button directly and/or Ignition wire at the same time.
  • CANbus communication ports allows connection to applicable peripheral CAN devices.
  • 4 Diagnostic LED’s assist installers and users to quickly find faults and/or operational issues.

Additional information

LED Color

RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN

Lens Color

Clear, Amber

Specifications

Compliance:
SAE J1849 EVS1; ECE R10; CISPR 25
Standby Current: <2 mA
@12VDC/24VDC (Sleep Mode)
300-550mA @ 12VDC/24VDC (Operation Mode)
Raw Lumen 1863 Im @ Full Power
186 Im @ Low Power
Effective Lumen:
1107 Im @ Full Power
102 Im @ Low Power
Max. Current: 20A @ 12VDC/10A @ 24VDC (w/o light control outputs)
100A @ 12VDC/50A @ 24VDC (w/ light control outputs)
Siren Output Power: 200W (100W Speaker x2) 110
Siren Frequency: varies between tones
Operating Temp:  -30°C to 65°C
Cable Lengths: Connector Harness x5: 30cm

Download

Details

Powerful Audio Solutions by MaxP

When emergency vehicles navigate through busy roads every second counts. A reliable and high-performance audio warning unit is one of the most critical components of any emergency fleet. MaxP delivers the most advanced ambulance warning siren system in UAE designed to meet the demanding requirements of modern emergency response operations.

The MaxP SDN212H/R Series is engineered to provide powerful audio output, intelligent control and consistent performance across all emergency environments. Whether your fleet operates in dense city traffic or open highway conditions this unit ensures that your vehicle is always heard and respected on the road.

Why a High-Performance Warning Unit Matters for Emergency Fleets

Emergency response teams cannot afford delays. A powerful audible alert plays a direct role in saving lives by clearing traffic and alerting pedestrians well in advance. Without a dependable warning system ambulance crews face unnecessary risks and slower response times.

The ambulance warning siren system in UAE by MaxP is built to eliminate these challenges. It combines superior audio technology with advanced programmability to give operators complete control over their audible warning output. Every component is designed for reliability, durability and long-term performance in demanding field conditions.

MaxP SDN212H/R Series | Built for Performance

The MaxP SDN212H/R Series is a fully programmable siren and control system crafted for modern emergency vehicles. It features a 200W Class D amplifier that delivers strong and clear audio output while maintaining low power consumption. The system operates across 12V to 24V DC systems making it compatible with a wide range of emergency vehicle configurations.

This is built to perform consistently in extreme temperatures ranging from -30°C to 65°C. This level of durability ensures that the unit remains functional even in the harshest environmental conditions across the UAE and GCC regions.

Advanced Programmability and Control

One of the standout features of this system is its fully programmable configuration. Using dedicated PC software operators can customize every aspect of the system behavior to match their specific operational needs.

Programmable features include button and input styles such as maintained momentary and timer-based functions. Users can also configure button interlink interlock and output port behavior along with multi-press functionality and custom tone selection including primary override mixer and hands-free tones.

The ambulance warning siren system in UAE gives operators complete flexibility to configure audio alerts according to different emergency scenarios. This level of control makes the system highly adaptable for various fleet requirements across law enforcement medical services and fire departments.

Dual Controller Options for Every Operation

MaxP understands that different operators have different preferences. That is why the ambulance warning siren system in UAE is available with two controller configurations.

The first option is a 15-button handheld controller featuring a built-in microphone button buzzer, six traffic arrow indicator LEDs and a power magnet mounting mechanism. The second option is a 19-button panel controller with a 4-position slide switch, a detachable handheld microphone, a built-in buzzer, six traffic arrow indicator LEDs and one stealth hidden button.

Both controllers are designed for quick access and ease of use ensuring that operators can manage audio functions efficiently during critical response situations.

Powerful Audio Features and Tone Selection

The MaxP siren system offers a comprehensive range of audio tones and features to suit different emergency scenarios. Selectable tones include Wail Yelp Phaser Hi-Lo Mechanical and European tones. This variety allows operators to use the most appropriate alert sound for each situation.

Additional audio features include Radio Re-Broadcasting for audio replay and a Record-n-Play function that supports message recording of up to 30 seconds. The Dual Tone function enables two speakers to simultaneously produce different tones creating a fanfare effect for maximum impact in high-traffic environments.

The ambulance warning siren system in UAE also supports one or two 100W speakers through its 200W amplifier ensuring that the audio output is powerful enough to be heard from a significant distance.

Smart Integration and Input/Output Capabilities

The MaxP siren system is designed for seamless integration with existing vehicle electronics. It features 12 programmable outputs and one dry contact relay output with independent N.C and N.O terminals. The system also includes four logic inputs supporting both positive and negative activation along with one analogue input for voltage-variable control.

CANbus communication ports allow the system to connect with compatible peripheral CAN devices enabling deeper integration with complex vehicle systems. This makes the ambulance warning siren system in UAE a smart and scalable solution for fleets that require advanced electronic connectivity.

Energy Efficiency and Safety Features

MaxP prioritizes energy efficiency without compromising on performance. The SDN212H/R Series features voltage detection with programmable low-voltage protection ensuring that the unit does not drain the vehicle battery during standby. The ultra-low standby current of only 2mA during sleep mode makes this system highly efficient.

The sleep mode button allows operators to activate or deactivate the unit using either the controller button or the ignition wire. Four diagnostic LEDs assist installers and users in quickly identifying faults and resolving operational issues. These features make the ambulance warning siren system in UAE a reliable and energy-conscious choice for emergency fleets.

Certifications and Compliance Standards

MaxP ensures that every siren system meets internationally recognized safety and performance standards. The SDN212H/R Series is certified under SAE J1849 EVS1 ECE R10 and CISPR 25. These certifications confirm that the ambulance warning siren system in UAE complies with global industry requirements and is suitable for deployment across professional emergency fleets.

Why Choose MaxP for Your Emergency Audio Needs

MaxP is a trusted name in vehicle safety and communication solutions across the UAE and GCC region. With over 15000 vehicles depending on MaxP products the company has built a strong reputation for quality innovation and customer support.

The siren solutions from MaxP reflect the company’s commitment to delivering high-performance products backed by strong R&D OEM manufacturing capabilities and dedicated pre-sales and post-sales support.

Contact MaxP Today

Upgrade your emergency fleet with the most advanced audio warning solution available in the region. Contact MaxP today to learn more about the ambulance warning siren system in UAE and discover how this powerful siren can transform your emergency response capabilities.
