Certifications & Standards
• SAE J595 Class 1(R,A,B,W); ECE R65 (XA2, XB2); ECE R10
Color Options
LED Color:: RED, BLUE, AMBER, WHITE
| LED Color | RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN |
|---|---|
| Lens Color | Clear, Amber |
| Meets: | SAE J595 Class 1(R,A,B,W); ECE R65 (XA2, XB2); ECE R10 |
|---|---|
| LED Elements: | High-power LED x 12pcs |

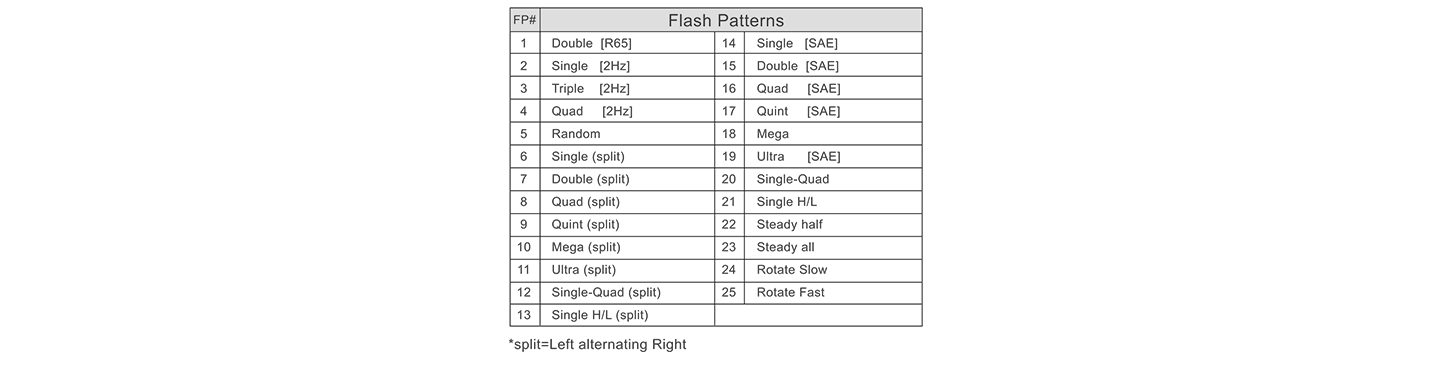

| No. of Warning Patterns: | 25 Flash Patterns |
| Operating Voltage: | 12-24VDC Avg. Current: 0.78A @12VDC / 0.39A @24VDC (varies with flash pattern) Avg. Power: 9.25 Watts (varies with flash pattern) |
| Max Current: | 1.56A @12VDC / 0.78A @24VDC |
| Max. Power: | 18.5 Watts Wires: Red-Vcc: 25cm (20AWG) Black-GND: 25cm (20AWG) Yellow-Flash Patterns & Sync: 25cm (20AWG) White-Low Power: 25cm (20AWG) Fuse Recommended: 3A Multi-Unit Synchronization: Over 15 units Wire Length: 25cm Fuse Rating: 2A Synchronization: 20 Units |
