MaxP ST26 M062-1

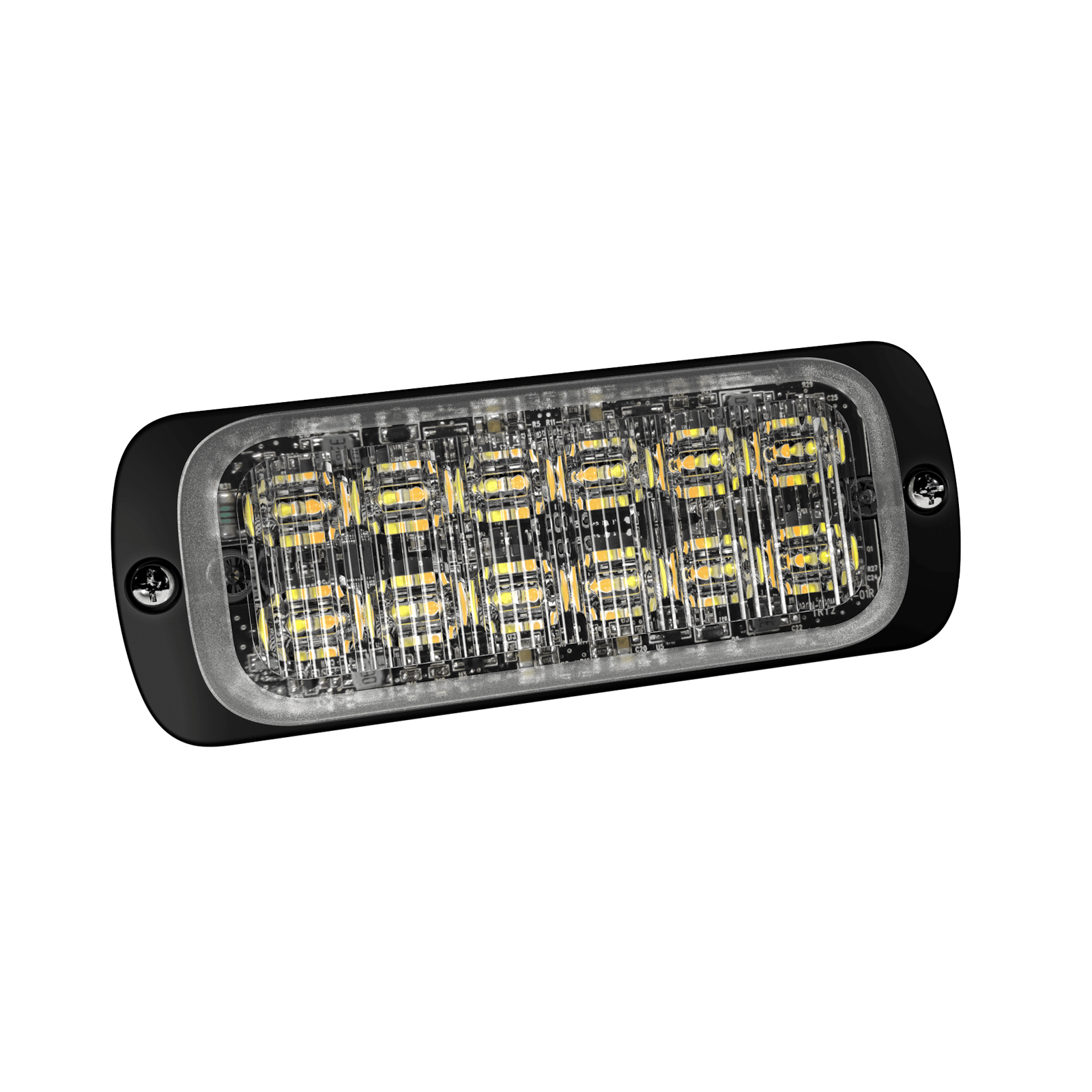

MaxP ST26 M062-1 - Image 2

Sold out

MaxP ST26 Dual Color

Certifications & Standards
• SAE J595 Class 1(R,A,B,W);
• LED: High-power LED x 24 pcs
Color Options
• LED Colour: Red, Blue, Green, Amber, White
• Lens Colour: Clear

<span class="ts-tooltip button-tooltip" data-title="Add to compare">Compare</span>

Details

Dual Colour SAE J595 Class 1 certified lighthead:
documentation available upon request.
Meets ECE R65 & R10 standard; certification will be applied upon request.
0.35″ (9mm) Super low-profile thickness.
12~24VDC Multi-Voltage Input.
Built-in 28 selectable flash patterns
LEDs rated to 100,000 hours of operation.
Non-volatile memory recalls last flash pattern used at power up.
Multi-units synchronization in simultaneous or alternating flash.
Reverse polarity protection.
Weatherproof and vibration resistant design for internal or external use.
Aluminium base for efficient heat dissipation.

Additional information

LED Color	RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN
Lens Color	Clear, Amber

Specifications

Compliance:	SAE J595 Class 1(R,A,B,W);
LED Elements:	High-power LED x 24pcs
No. of Warning Patterns:	28 Flash Patterns
Operating Voltage:	12-24VDC Avg. Current: 1.39A @12VDC / 0.70A @24VDC (varies with flash pattern) Avg. Power: 16.68 Watts (varies with flash pattern)
Max Current:	2.78A @12VDC / 1.39A @24VDC
Max. Power:	33.36 Watts Wires: Red-Warning Mode 1: 46cm (20AWG) White-Warning Mode 2: 46cm (20AWG) Black-GND: 46cm (20AWG) Yellow-Flash Patterns & Sync: 46cm (20AWG) Fuse Recommended: 3A Multi-Unit Synchronization: Up to 20 units

Dimensions

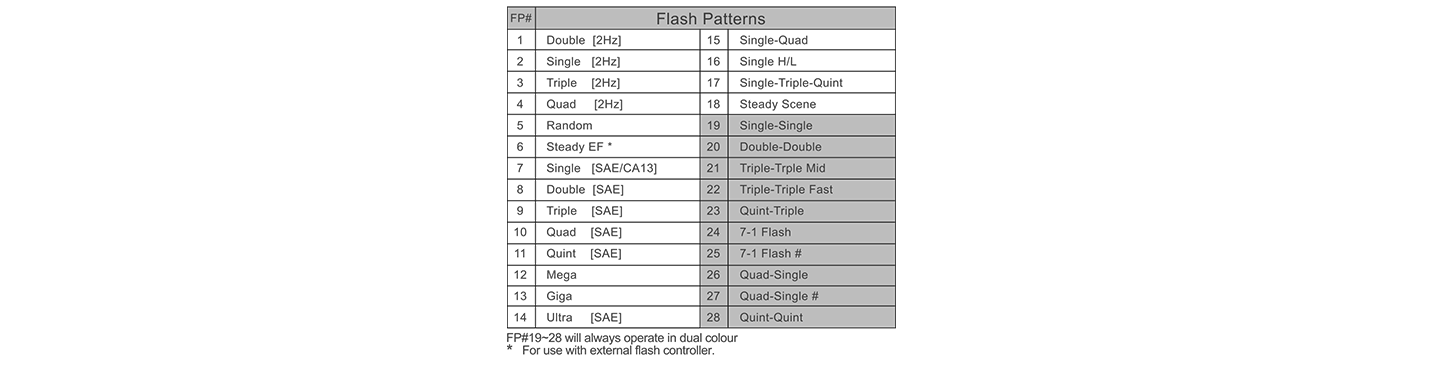

Pattern

Download

DOWNLOAD MAXP ST26-2 Spreadsheet

DOWNLOAD MAXP ST26-2 User Manual
