Details

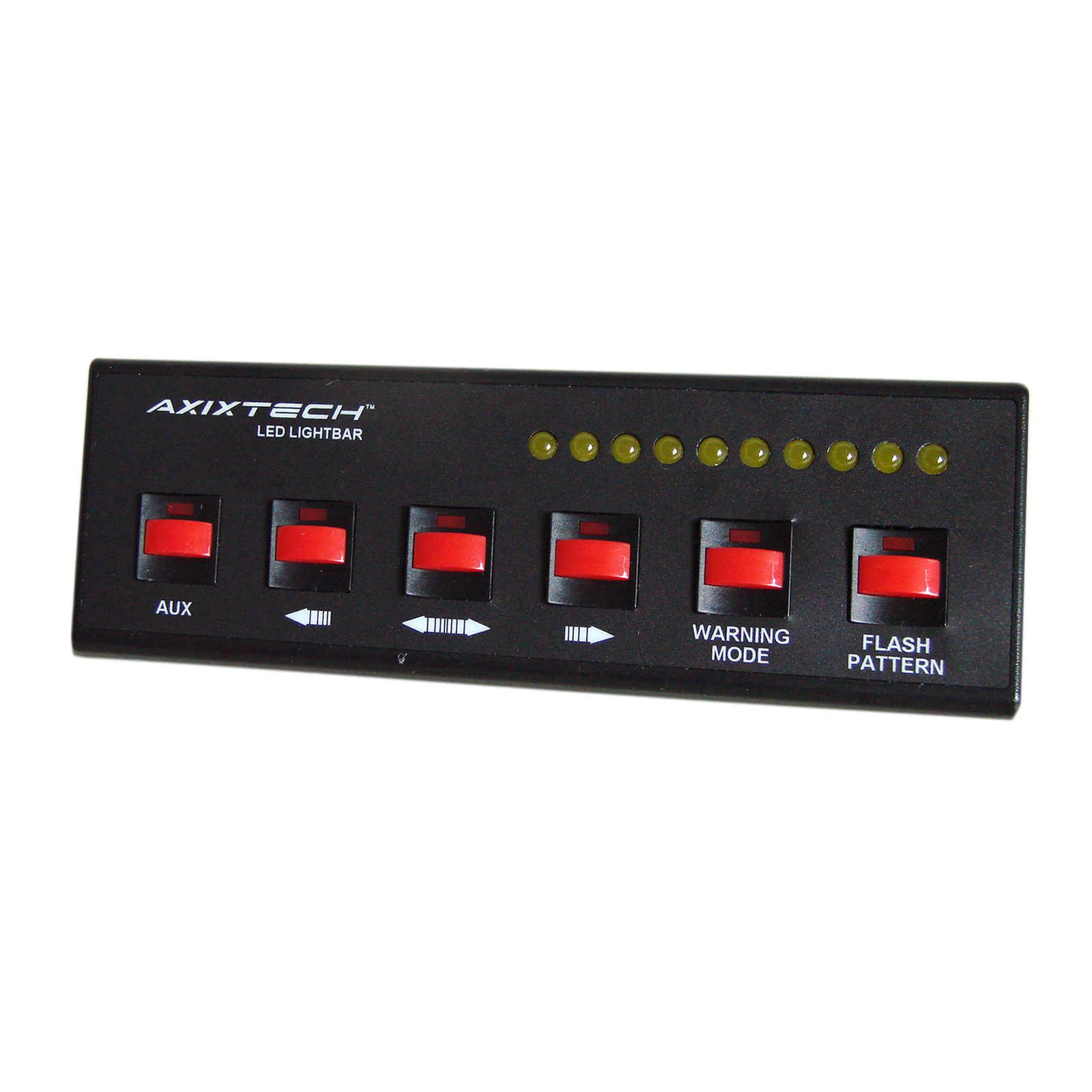

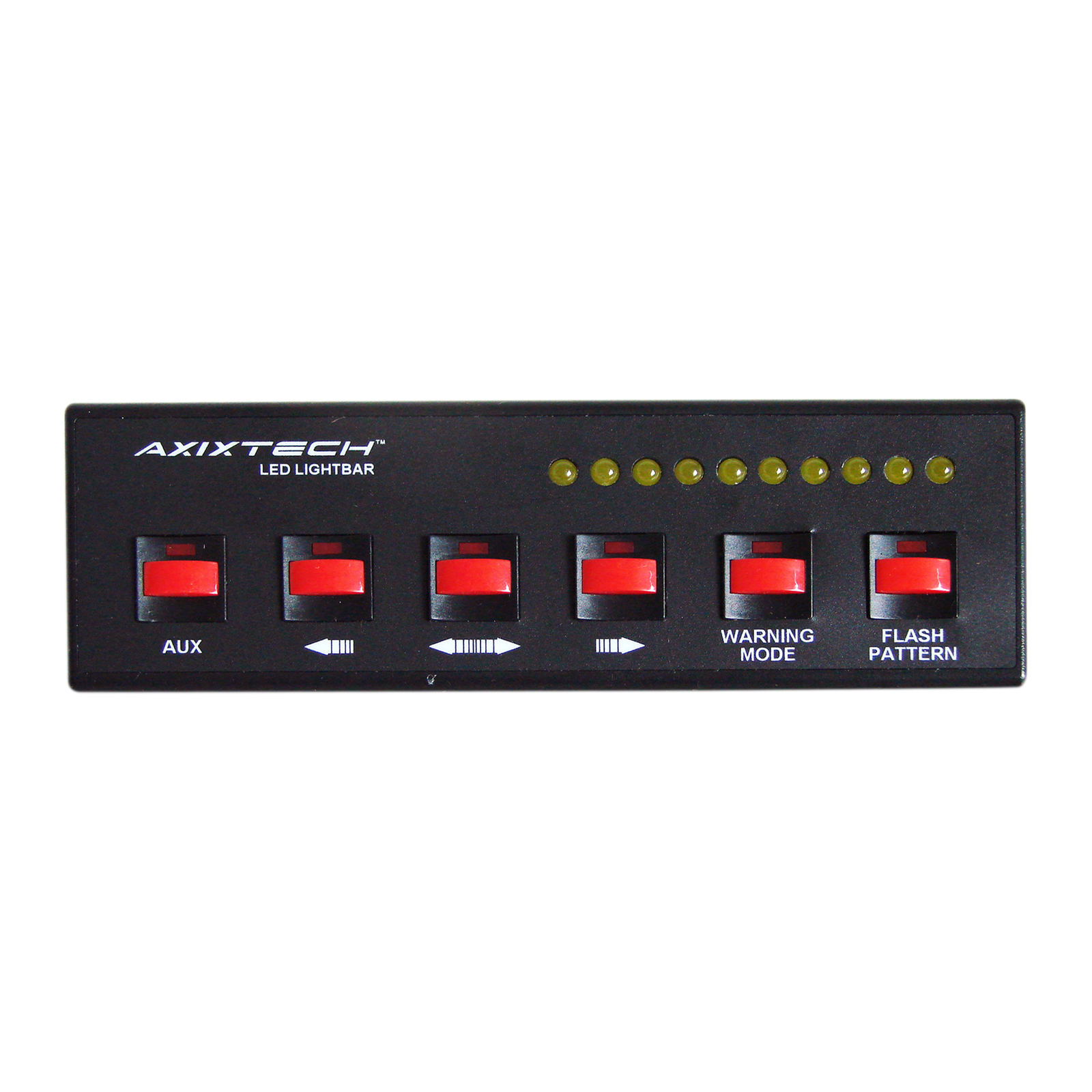

  • 6 Buttons switch panel designated for Lightbar or Directional Advisor control.
  • 5 x maintained switches and 1 x momentary switch.
  • LED indicator for individual switch.
  • Tactile & clicky feedback buttons.
  • Designated 10 LED indicators for lightbar or Directional Advisor signal display.

Additional information

LED Color

RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN

Lens Color

Clear, Amber

Specifications

Operation Temperature:
-30-65 °C
Input Voltage: 10~30VDC
Input Current: 0.2A/port 1.0A/6 Ports
Output Voltage: 10-24VDC
Output Current: 0.2A x 1 port (AUX): 0.01A x 5 ports
Modular Cable Length: 0cm (18AWG) x 8 wires

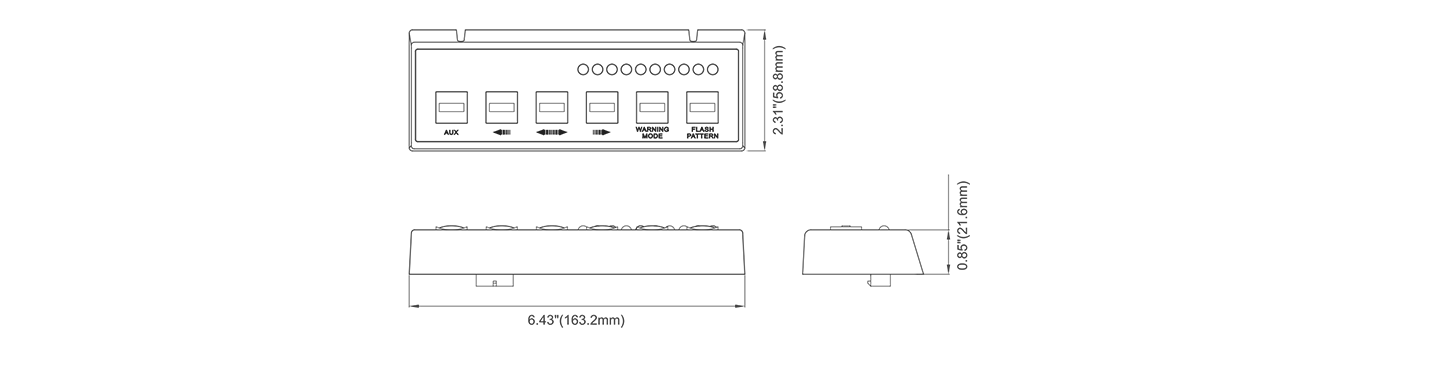

Dimensions

Download
