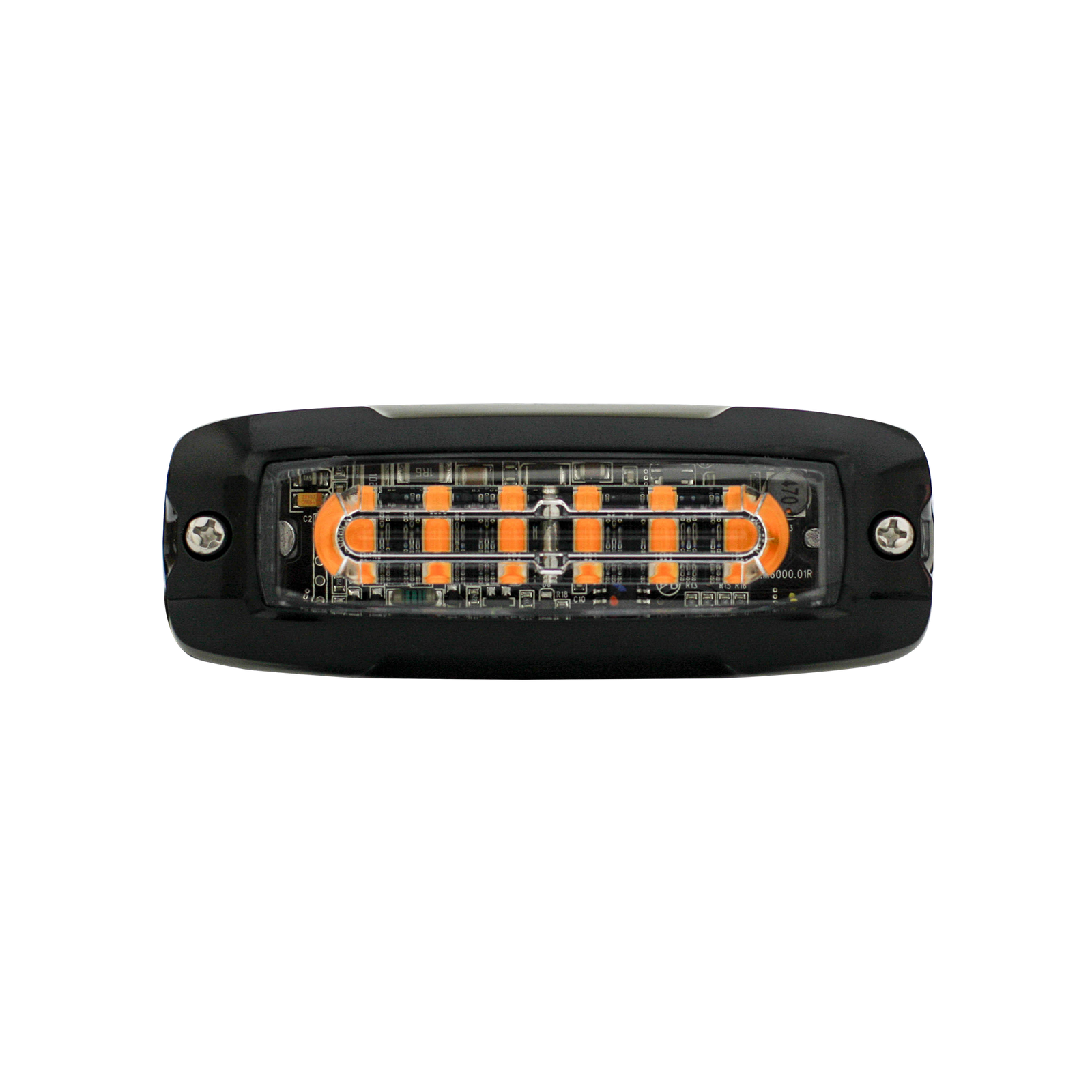

MaxP XT6

Certifications & Standards
• SAE J595 Class 1, ECE R10, CA13, IPX7
• LED Elements: High-power LED x 4 pcs
Color Options
• LED Colour: RED, BLUE, AMBER, WHITE
• Lens Colour: Clear

This product is currently out of stock and unavailable.

Details

  • New Generation Xtreme optic for wide angle visual and classic aesthetics.
  • SAE and ECE R65 certified high power output..
  • ECE R10 EMC Compliance.
  • 0.39″ (10mm) Super low-profile thickness.
  • Long life LEDs rated to 100,000 hours of operation.
  • Non-volatile memory recalls last flash pattern used at power up.
  • Multi-units synchronization in simultaneous or alternating flash.
  • Reverse polarity protection.
  • Weatherproof and vibration resistant design for internal or external use.
  • Solid aluminium base for efficient heat dissipation.

Additional information

LED Color

RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN

Lens Color

Clear, Amber

Specifications

Compliance:
ECE R65 (XA1, XB1)
ECE R10
SAE J595 Class 1
CA Title 13 (R. B)
IPX8
LED Elements: High-power LED x 6pcs

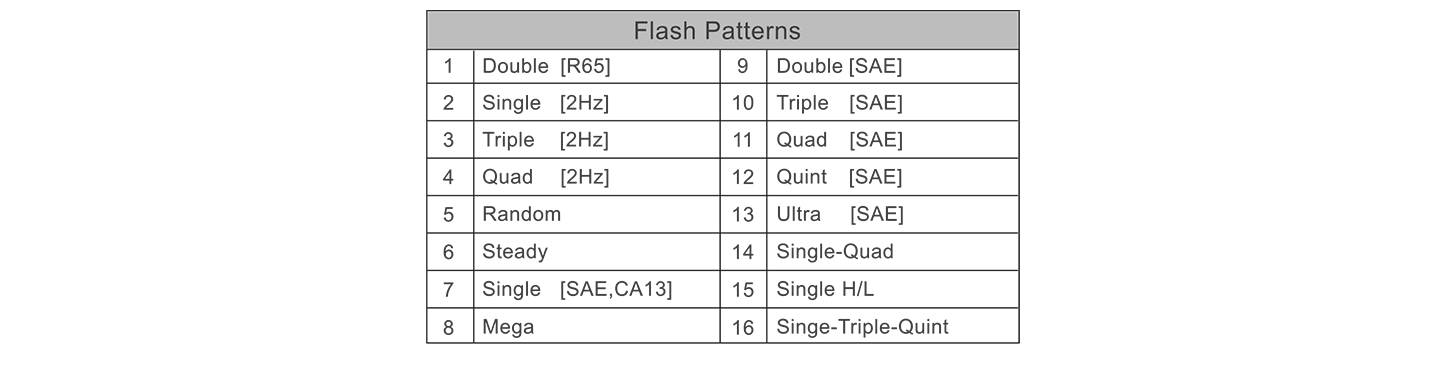

No. of Warning Patterns: 16
Operating Voltage: Average Current: 0.44A @12VDC/0,22A @24VDC(varies with flash pattern)
Max Current: 0.88A @12VDC/0.44A @24VDC
Max. Power: 10.6 Watts
Wires: Red-Vcc: 25cm (20AWG)
Black-GND: 25cm (20AWG)
Yellow-Sync & Functions: 25cm (20AWG)
Fuse Rating: 1A

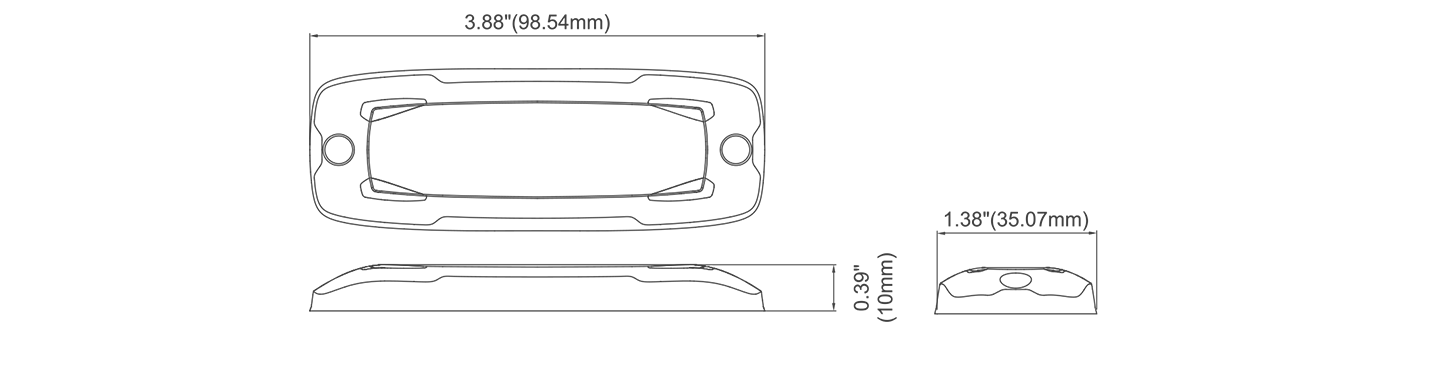

Dimensions

Pattern

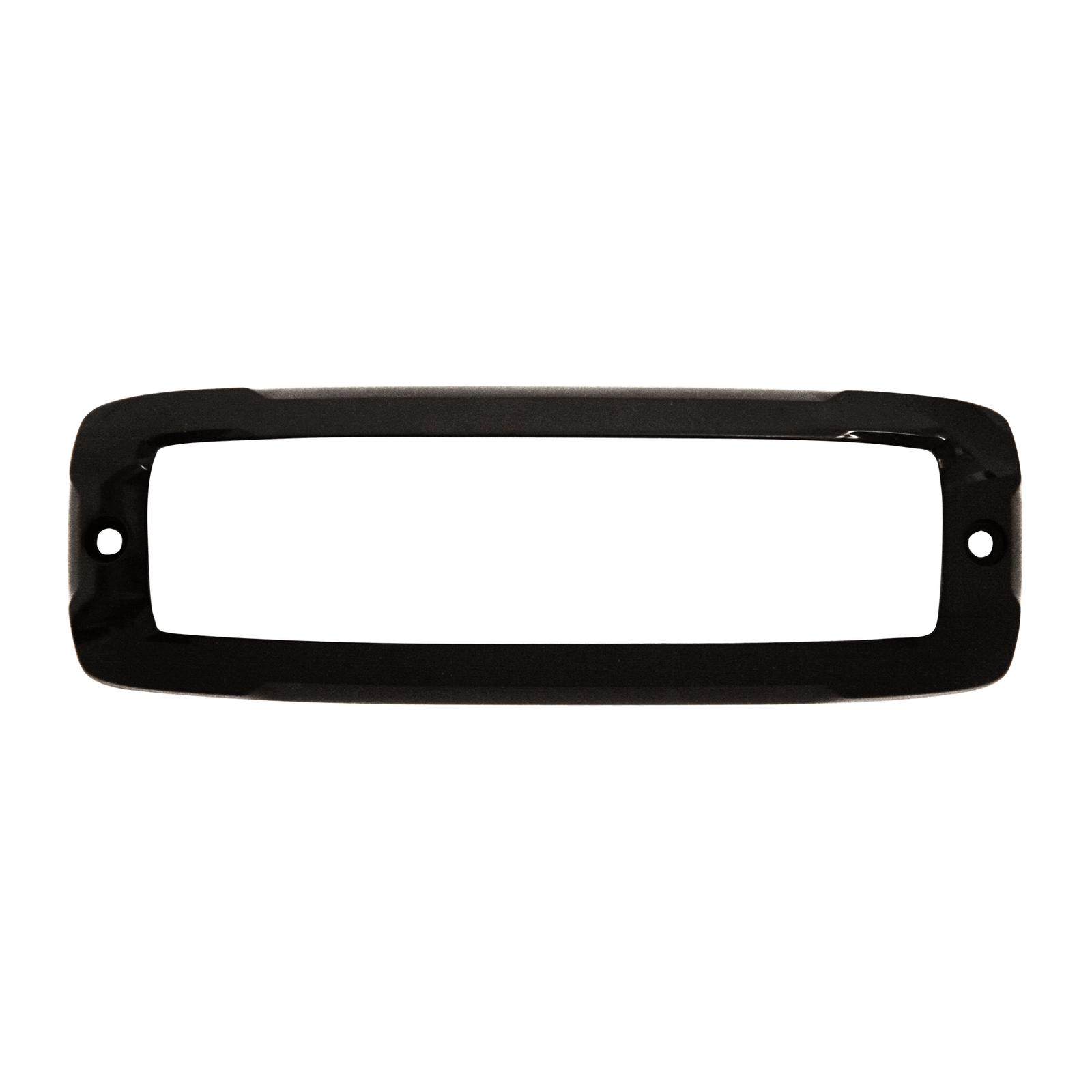

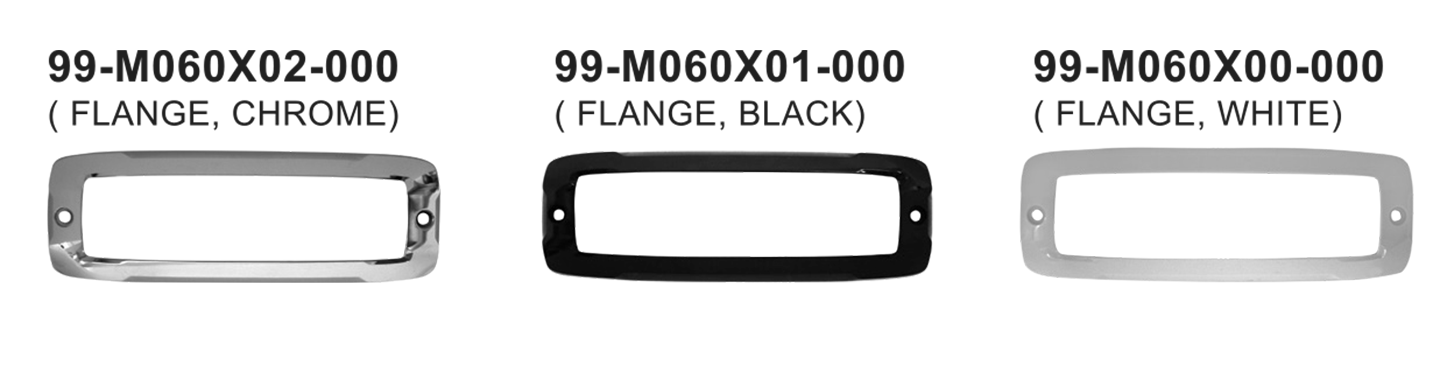

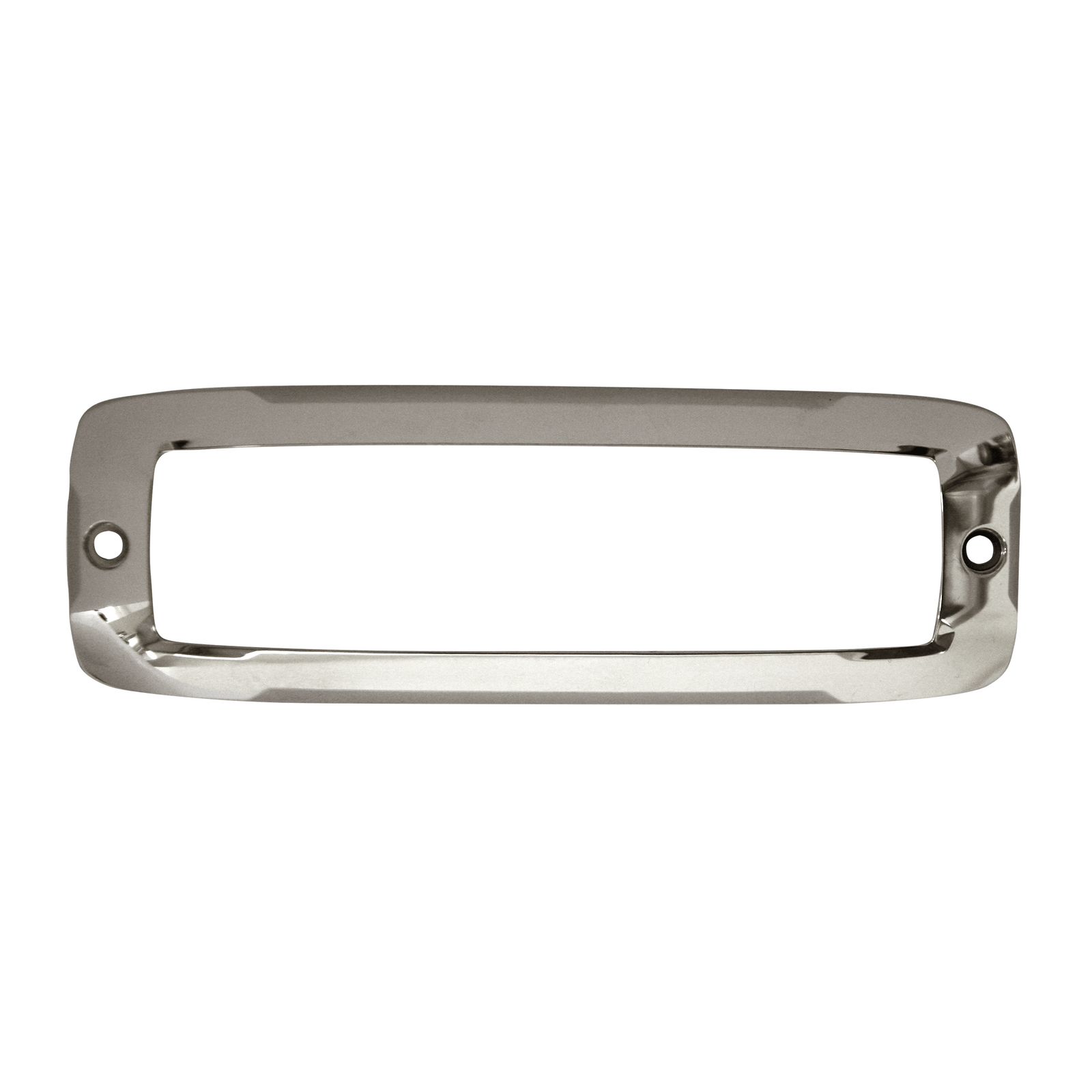

Accessories

Download
