Details
PRECISION SOUND, GLOBAL COMPLIANCE

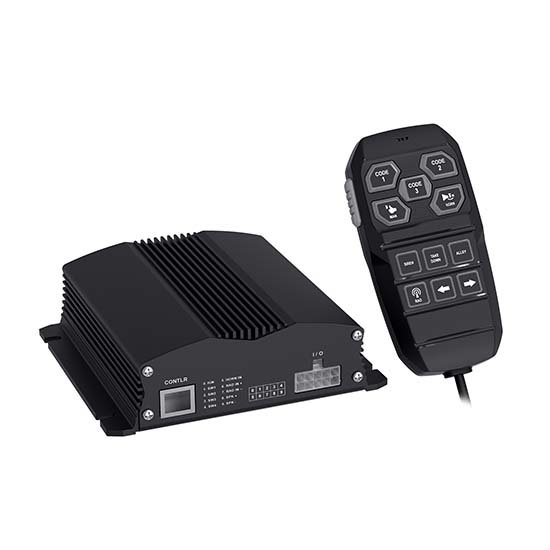

- 100W compact siren amplifier.
- 12-button handheld controller with built-in microphone.
- 4 x 5A relay output for warning lights.
- Siren Interlock and horn ring transfer inputs.
MAXP SDF104H
$123.00
Additional information
| Approval | ECE R10, SAE J1849 EVS1 |
|---|
Features
- 100W siren amplifier for single speaker (11Ohm) setup.
- Class D amplifier for low amp draw and clean tone.
- 12-24VDC multi-voltage.
- Siren Interlock function that disables siren activation without primary warning.
- 4 x 5A relay output switch.
- 22 selectable tone cycles comprised of international and European tones.
- Positive input for Horn Ring Transfer.
- Radio Re-Broadcasting (RRB) and PA function.
- 12-button handheld controller with built-in microphone.
- Compact design with aluminium chassis.
- Programmable Code 1/2/3 buttons, momentary/maintained/timer switch, siren volume, tone.
- Reverse Polarity Protection.
Specification
Compliance: SAE J1849 EVS1, CA13; ECE R10: CISPR 25
Input Voltage: 12-24 VDC
Standby Current: 0 mA (w/o IGN wire)/0.35 A (w/ IGN wire)
Avg. Current: 8.5A @ 12VDC/4A @ 24VDC
Max. Current: 10A @ 12VDC/5A @ 24VDC (w/o light control outputs) 30A @ 12VDC/25A @ 24VDC (w/ light control outputs)
Siren Output Power: 100W
Siren Output Load: 100W-ACR 110
Siren Frequency:761Hz-1592Hz (WAIL/YELP/PHASER);362Hz-733 Hz (HI/LO)
Operating Temp: -30°C to 65°C,I/O:+VDC,-GND,IGN(Ignition),SW1-SW4,Speaker Output+-,Horn Ring Transfer,Input,Radio Audio Input +-,
Siren Controls:
5 ON/OFF push-buttons (SIREN, RADIO, Code 1, Code 2, Code 3)
3 Momentary push-buttons (PTT, MAN, HORN)
4 Momentary/Maintained/Timer push-buttons (SW1, SW2, SW3, SW4)
SW1 may be set to interlock SW2, SW3, SW4 and Siren
IGN (Ignition) Input Connection
Light Controls: 4 lighted push-button switches with replaceable legends.
HORN Input Connection
Light Output Ratings: Built-in 5A fuse on each of the 4 outputs.

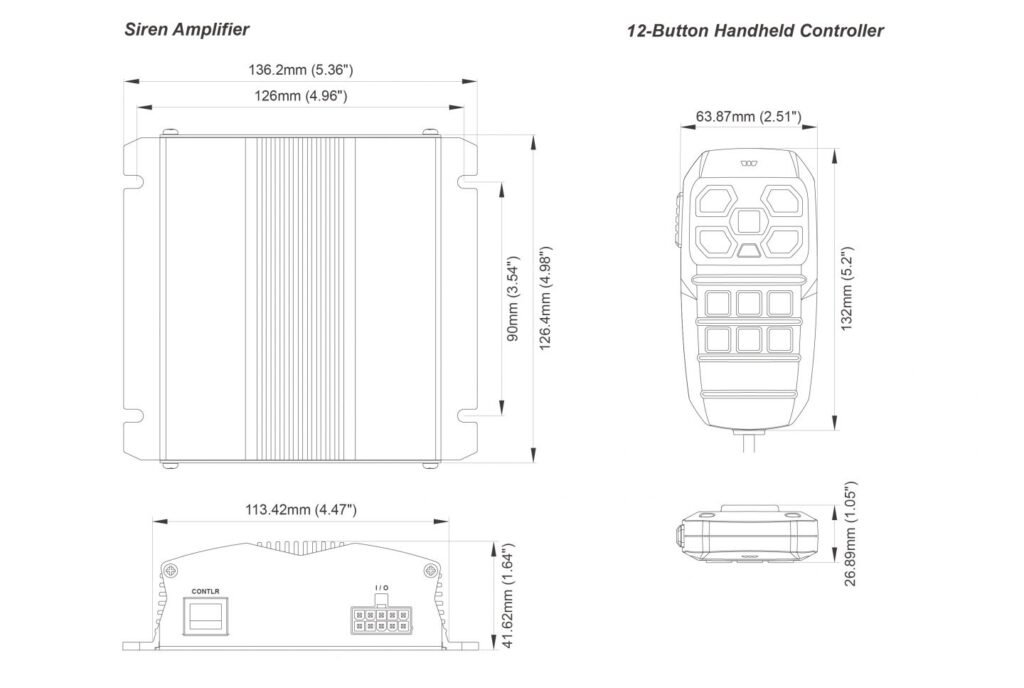

Dimensions
