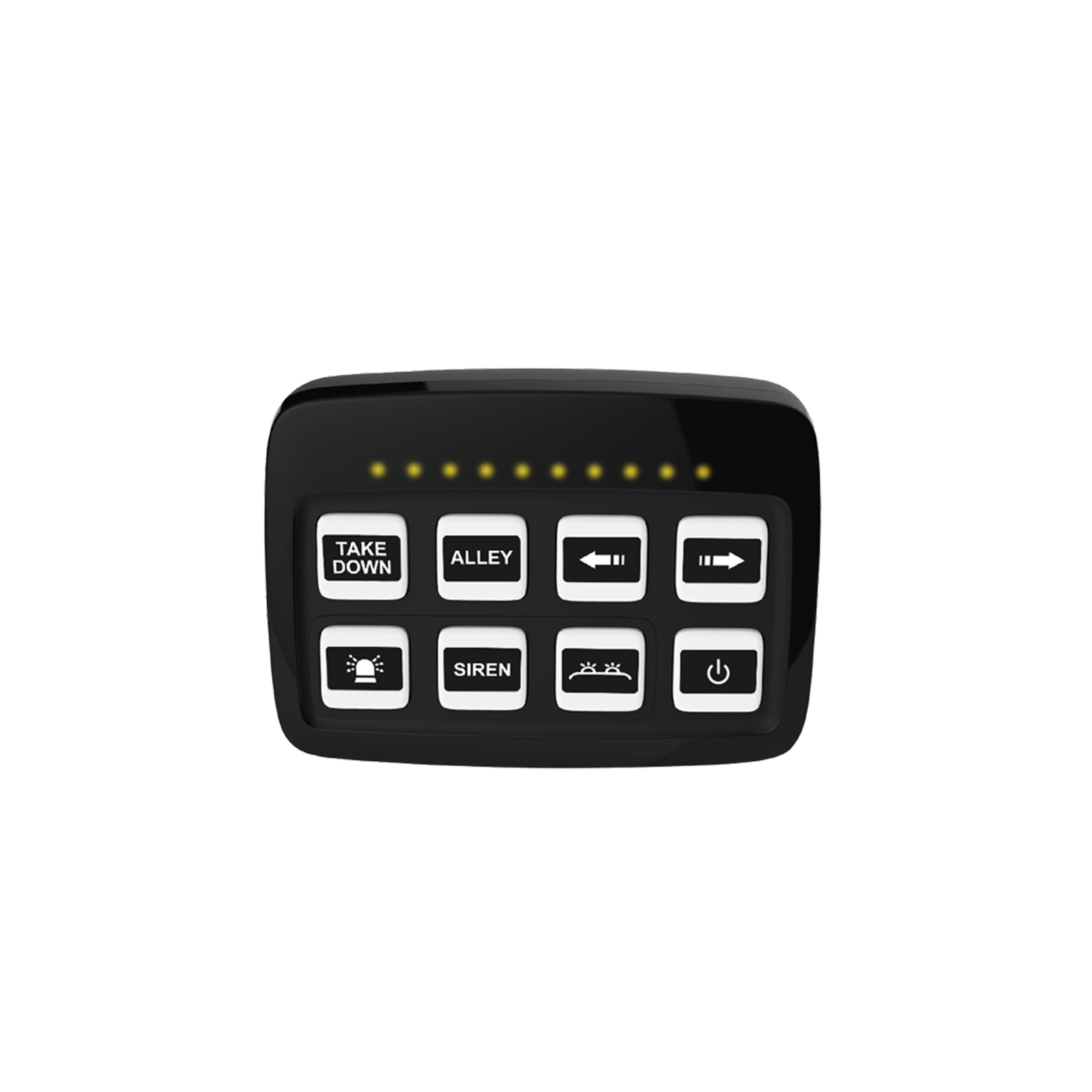

MaxP SW830-2

• ECE R10

This product is currently out of stock and unavailable.

Details

  • 3 Button/4 Button mutually exclusive control grouping for Traffic Arrow application.
  • 1 Programable Short Cut Button for quick activation of pre-set buttons.
  • Backlit rubber touch buttons.
  • Fully programmable buttons in ON/OFF or momentary switch mode.
  • European Siren Interlock compatible.
  • 10 LED signal indicator for your lightbar or traffic director.
  • 35 selectable icon stickers to clearly label your panel.
  • Available in Software Ver. C with dual interlock buttons.

Additional information

LED Color

RED, BLUE, AMBER, WHITE, GREEN, BLUE/AMBER, RED/BLUE, RED/WHITE, AMBER/WHITE, AMBER/GREEN

Lens Color

Clear, Amber

Specifications

Compliance:
ECE R10
Operating Voltage: 10~24VDC
Input Current: max 1.2A/min 0.01A
Output Voltage: 10-24VDC
Output Current: max 0.2A x 3 ports /max 0.1A x 4 ports
Storage Temperature:  -40°C~75°C

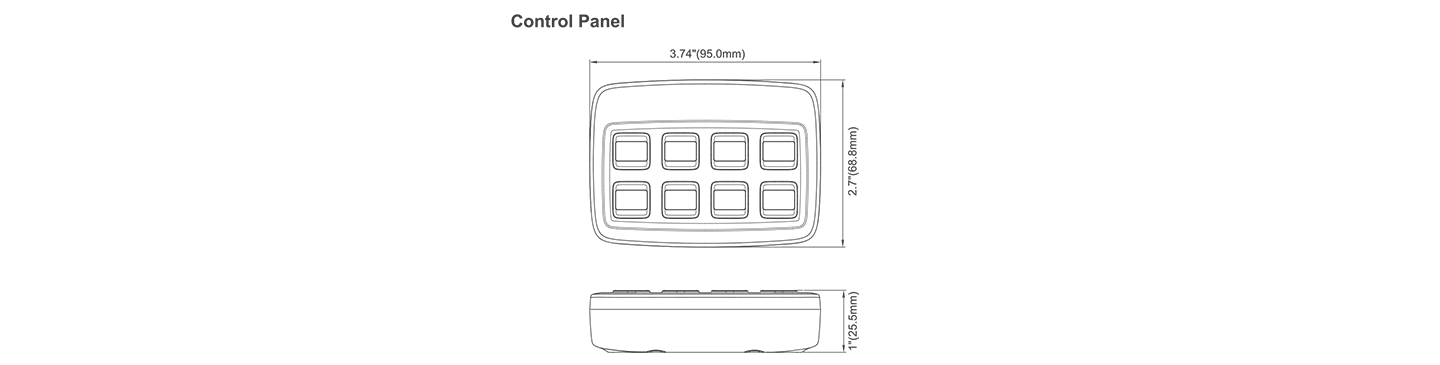

Dimensions

Download
